Connector Generator - Parametric Connectors

Looking for Custom Connectors? Look no further.

This OpenSCAD script allows you to generate a wide variety of parametric connectors with fully customizable geometry. Whether you need round, square, or octagonal connectors, this script lets you design precise, modular joints for structural assemblies, toys, PVC fittings, DIY builds, and more.

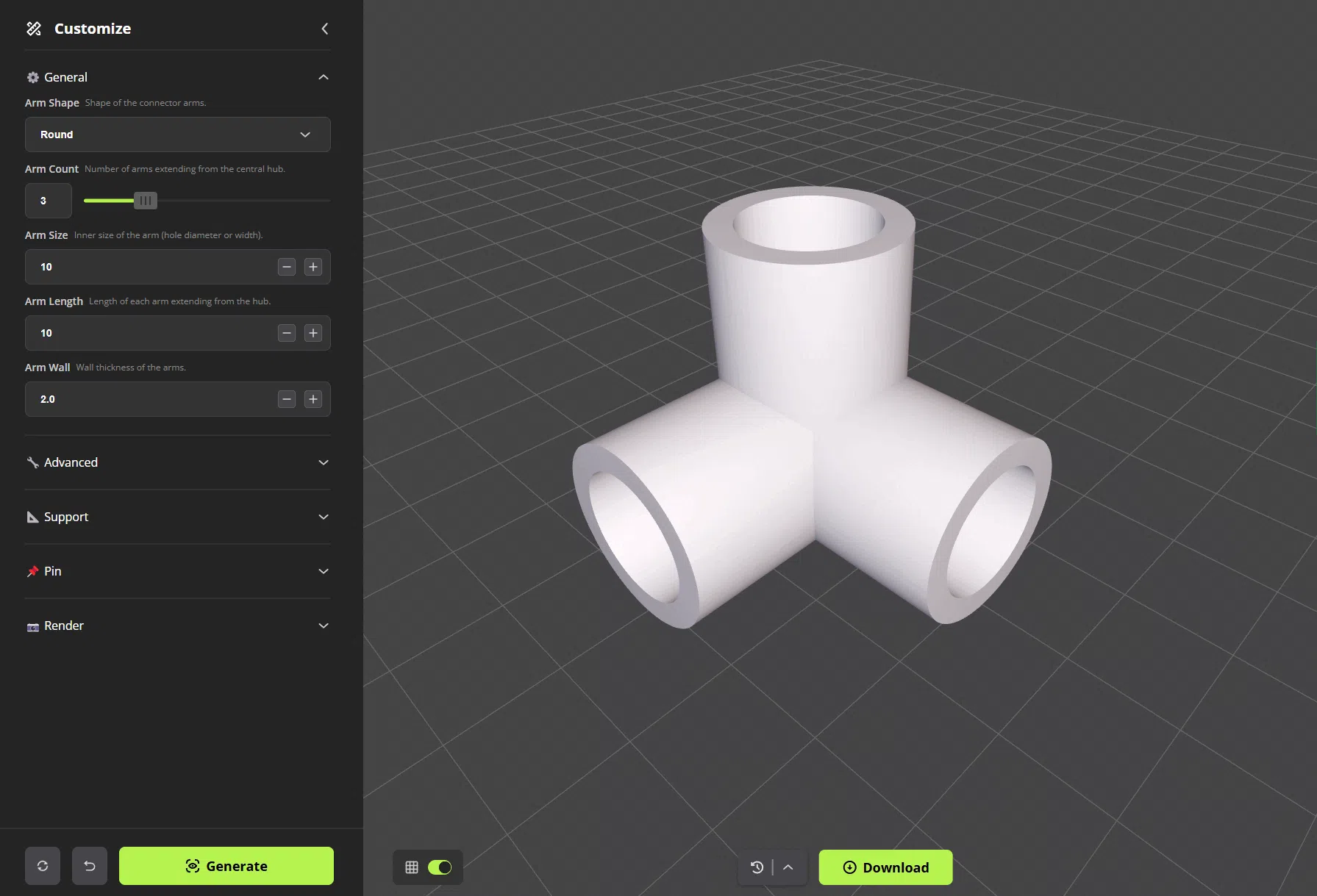

Click on Customize to open the generator.


Using Bambu Studio or Bambu Handy? Visit Makerworld.com to customize this model.

🚀 Quick Start

Create your connector in no-time. Here’s how to get started:

1. Define Your Connector

   Set up the core structure by choosing the arm shape (round, square, or octagonal), selecting the number of arms, and adjusting their size, length, and wall thickness. The hub shape can match the arms or be customized separately.

2. Customize Advanced Options

   Fine-tune the internal hole shape and adjust clearance for precise fits. Control the starting orientation (upright or flat) and tweak arm rotation angles in the X & Y directions. If needed, enable support structures between arms with adjustable thickness and taper.

3. Export & Print

   Once customized, export your model for slicing and printing.
   Your connector is now ready for assembly!

⭐ Features

• Fully Customizable

  Easily adjust every aspect for precise structural fits.

• Versatile Design

  Create multi-arm connectors in various shapes, sizes, and orientations.

• Reinforcement support

  Add optional supports between arms for extra strength and durability.

• Precision Modeling
  Generates clean, accurate geometry for reliable connections.
